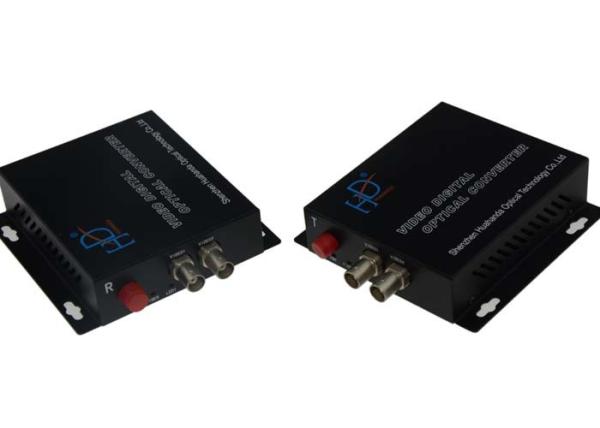

Digital Video To Fiber Converter 2 Channel Video Multiplexer Converter FC 20KM

    Buy cheap Digital Video To Fiber Converter 2 Channel Video Multiplexer Converter FC 20KM from wholesalers

    Buy cheap Digital Video To Fiber Converter 2 Channel Video Multiplexer Converter FC 20KM from wholesalers
    • Buy cheap Digital Video To Fiber Converter 2 Channel Video Multiplexer Converter FC 20KM from wholesalers

    Digital Video To Fiber Converter 2 Channel Video Multiplexer Converter FC 20KM

    Ask Lasest Price
    Brand Name : HD
    Model Number : HD-AHD-2V-T/RF
    Certification : CE/ROHS/FCC/ISO 9001
    Price : negotiation
    Payment Terms : T/T or western Union
    Supply Ability : 50000 pcs per month
    Delivery Time : 3-7working days after received deposit
    • Product Details
    • Company Profile

    Digital Video To Fiber Converter 2 Channel Video Multiplexer Converter FC 20KM


    2 Channels digital video multiplexer video to fiber converter FC 20KM


    Features

    1. Card-type or Stand-alone type for your choice; suitable for concentration management in 4U Racks
    2. 10 –digit coding and non-compression video transmission
    3. supporting any high –resolution video signal
    4. automatically compatible with PAL, NTSC and SECAM video format
    5. Supporting video intact regenerative relay, the video transmission can be reach above 200km
    6. Supporting advanced SNMP standards, realise long-distance web-controlling
    7. LED indication of power and other parameter status, monitoring real-time operation
    8. Modularized and industrialized design ensuring reliability and flexibility

    Technical Specification

    Fiber Features:( the fiber optic connectors usually is FC, can order ST)


    Typewavelength
    (nm)

    TX power

    dBm

    Transmission Distance KmLose dBm/KmFiber Type
    Multi-mode850,1310-19.5~-160~21850/1310nm(Multi-mode)
    Single-mode1310-9~-60~200.5Single-mode(9/125um)
    1310-7~-40~400.5Single-mode (9/125um)
    1310-5~-10~600.25Single-mode (9/125um)
    1550DFB-2~00~1000.25

    Single-mode (9/125um)


    Optics:


    WavelengthWDM:1310nm/1550nm
    Output Power-8~3dBm
    Optic fiber50/125u multimode,62.5/125u multimode,9/125u single mode
    Rx sensitivity-26dBm
    Optical connectorFC,ST,SC (optional)
    Distance0~550M (MM) / 0~80KM (SM) (Default distance is 20Km)


    Video:

    Number of Channels2
    Input/output impedance75 Ohm (unbalance)
    Standard video input/output voltage1.0Vp-p
    Video Bandwidth50MHz
    Sampling Bandwidth8bit
    Sampling Frequency108MHz
    Signal to noise ratio>67dB
    Rise and Fall time<0.8ns
    Optical Signal Intrinsic Jitter<0.2 UI
    Differential Gain< ±1.5%
    Differential Phase< ±1°
    ConnectorBNC
    Supporting video pixel

    1280(H)x720(V)@30Hz/1MPX
    1280(H)x720(V)@50Hz/1MPX
    1280(H)x960(V)@30Hz/1.3MPX
    1920(H)x1080(V)@30Hz/2MPX



    Data:

    ProtocolDefault :RS485 (RS232/RS422 Optional)
    Number of channels2
    Connector9pins Terminal Blocks
    Data Rate0-200Kbps
    DirectionsDefault :Simplex from Rx to Tx (BIDI duplex optional)


    Mechanical Structure & Environment

    PowerDC5V 2A
    Power Consumption≤6W
    Working Temperature-15ºC ~65ºC
    Storage Temperature-40ºC ~85ºC
    Relative Humidity5%~95% ( no condensation)
    MTBF≥ 100000Hours


    Certification





    Application

    • Intelligent Transportation System
    • Connection of Sub-network for Surveillance Center
    • Public Security Surveillance
    • High Way & Toll Station Surveillance
    • High Quality Video Conference
    • Industrial Closed Circuit Television Surveillance
    • Coliseum using for TV-live ,audio transmission

    Company profile


    1. 2009 HANDAR OPTICS Established in Nov 2009 , with professional R&D and sales team who had been working in fiber optical telecommunication field since 2004 .
    2. 2010 HANDAR OPTICS started to produce full range of multi-functional video/audio/data/Ethernet/Telephone/Alarm to fiber converters and became to one of the leading manufacturers in this field
    3. 2011 HANDAP OTPCIS founded our engineers team to develop the SFP transceivers , and start to produce 155M and 1.25G SFP transceivers at Aug 2011
    4. 2012 HANDAR OPTICS started the project for 10G SFP+
    5. 2013 HANDAR OPTICS founded our engineers team to develop the Industrial level Ethernet Switch and POE switch . and stated to produce at the end of 2013 .
    6. 2014 HANDAR OPTICS started the project for 40G QSFP/CFP/CFP2
    7. 2015 HANDAR OPTICS improved our products for analog video/audio/data multiplexer to High-Definition series , include Analog high-definition TVI/CVI/AHD and Digital high-definition SDI/HDMI . We became to the leading manufacturer of such products in Shenzhen China .
    8. 2016 HANDAR OPTICS moved to new office with better workshop which allow us to offer better products and services to our partners .
    9. 2017 HANDAR OPTICS will keep focusing on fiber optical telecommunications field and offer to all our partners higher quality and better services .

    2 Channels digital video multiplexer video to fiber converter FC 20KM
