Simplex FC Video To Fiber Converter 1080p/30Hz With 8bit Bandwidth

    Buy cheap Simplex FC Video To Fiber Converter 1080p/30Hz With 8bit Bandwidth from wholesalers

    Buy cheap Simplex FC Video To Fiber Converter 1080p/30Hz With 8bit Bandwidth from wholesalers
    • Buy cheap Simplex FC Video To Fiber Converter 1080p/30Hz With 8bit Bandwidth from wholesalers

    Simplex FC Video To Fiber Converter 1080p/30Hz With 8bit Bandwidth

    Ask Lasest Price
    Brand Name : HD
    Model Number : HD-AHD-2V-T/RF
    Certification : CE/ROHS/FCC/ISO 9001
    Price : negotiation
    Payment Terms : T/T or western Union
    Supply Ability : 50000 pcs per month
    Delivery Time : 3-7working days after received deposit
    • Product Details
    • Company Profile

    Simplex FC Video To Fiber Converter 1080p/30Hz With 8bit Bandwidth


    2 Channels Simplex FC video to fiber converter support 1080p/30Hz

    Introduction

    Our 2-Ch TVI/CVI/AHD TO Fiber Converters is universal type supporting High Definition Analog video format HD-TVI / HD-CVI / AHD , can simultaneously transmit 2 channels video and 2-ch RS485 over one core multimode or single-mode optical fiber. It also supports the regular analog video format such as PAL / NTSC /SECAM , it is a kind of universal fiber transmission solution / product for CCTV analog video/data signals . Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.

    Features

    1. Card-type or Stand-alone type for your choice; suitable for concentration management in 4U Racks
    2. 10 –digit coding and non-compression video transmission
    3. supporting any high –resolution video signal
    4. automatically compatible with PAL, NTSC and SECAM video format
    5. Supporting video intact regenerative relay, the video transmission can be reach above 200km
    6. Supporting advanced SNMP standards, realise long-distance web-controlling
    7. LED indication of power and other parameter status, monitoring real-time operation
    8. Modularized and industrialized design ensuring reliability and flexibility

    Technical Specification

    Fiber Features:( the fiber optic connectors usually is FC, can order ST)


    Typewavelength
    (nm)

    TX power

    dBm

    		Transmission Distance KmLose dBm/KmFiber Type
    Multi-mode850,1310-19.5~-160~21850/1310nm(Multi-mode)
    Single-mode1310-9~-60~200.5Single-mode(9/125um)
    1310-7~-40~400.5Single-mode (9/125um)
    1310-5~-10~600.25Single-mode (9/125um)
    1550DFB-2~00~1000.25

    Single-mode (9/125um)


    Optics:


    WavelengthWDM:1310nm/1550nm
    Output Power-8~3dBm
    Optic fiber50/125u multimode,62.5/125u multimode,9/125u single mode
    Rx sensitivity-26dBm
    Optical connectorFC,ST,SC (optional)
    Distance0~550M (MM) / 0~80KM (SM) (Default distance is 20Km)


    Video:

    Number of Channels1
    Input/output impedance75 Ohm (unbalance)
    Standard video input/output voltage1.0Vp-p
    Video Bandwidth50MHz
    Sampling Bandwidth8bit
    Sampling Frequency108MHz
    Signal to noise ratio>67dB
    Rise and Fall time<0.8ns
    Optical Signal Intrinsic Jitter<0.2 UI
    Differential Gain< ±1.5%
    Differential Phase< ±1°
    ConnectorBNC
    Supporting video pixel

    1280(H)x720(V)@30Hz/1MPX
    1280(H)x720(V)@50Hz/1MPX
    1280(H)x960(V)@30Hz/1.3MPX
    1920(H)x1080(V)@30Hz/2MPX



    Data:

    ProtocolDefault :RS485 (RS232/RS422 Optional)
    Number of channels2
    Connector9pins Terminal Blocks
    Data Rate0-200Kbps
    DirectionsDefault :Simplex from Rx to Tx (BIDI duplex optional)


    Mechanical Structure & Environment

    PowerDC5V 2A
    Power Consumption≤6W
    Working Temperature-15ºC ~65ºC
    Storage Temperature-40ºC ~85ºC
    Relative Humidity5%~95% ( no condensation)
    MTBF≥ 100000Hours

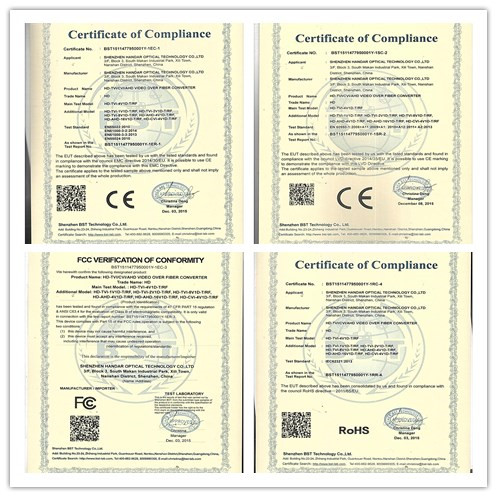

    Certification




    Target Industries:


    - Intelligent transportation supervisory system(ITS)
    - High-speed Way supervisory/Tele-Communication System
    - Security protection system, TV medical treatment
    - Long-distance Muti-media Schooling, Campus monitoring
    - Long-distance broadcast television transmission system
    - High-building Security Protection, Military Tele-Com projects

    2 Channels Simplex FC video to fiber converter support 1080p/30Hz
