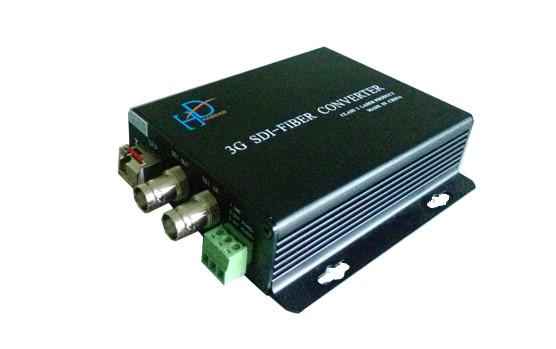

    1/2/4- Channels SDI Fiber Converter , Fiber Optic Video Converter LC Connector

    1/2/4-Channels SD-SDI/HD-SDI/3G-SDI Video to Fiber Converter


    System Design

    Fiber Optic Video Transmitter & Receiver

    SDI series can transmission 1/2/4-Channels

    SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber.


    Single-Mode or Multi-Mode

    SD-SDI/HD-SDI/3G-SDI units are designed to support LC /PC Optical connector

    We will offer free patch cord + adaptor for your request for SC/PC or ST/PC or FC/PC optical connector.

    The Transmission distance Range according to the Optical Budget.

    Manufacturer's default standard is single mode 20Km .


    Features

    •1/2/4 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber

    • The Max rate of work is 3.2Gb/s

    • Support SMPTE 292M (2.9Gb/s) clock recovery

    • Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)

    • Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)

    • Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)

    • LED Status Indication to monitor the working conditions

    • Video transmission system can support many application branches structure

    •The fiber port Support SFP transceiver hot-plugged

    •The SDI video format support:

    625/25 PAL

    525/29.97 NTSC

    525/23.98 NTSC

    720p50,720p59.94

    1080P 23.98/24/30/50/60

    1080i 23/24/30/50/59.94


    Typical application


    Remark:

    •The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).

    •When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.

    •Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

    •Maximum transmission distance is also limited by fiber bandwidth.

    •Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.

    •Please feel free to contact factory for any special requirement and customization


    Specifications

    Video

    Number of channels : 1/2/4 channels

    Input/out put Connector : BNC 75Ω

    Input/output voltage: 1.0 Volt p-p

    Video Bits Rate: Max 3.2Gb/s

    Video SDI Standards: 270Mbps(SD-SDI)

    1.485Gbps/M(HD-SDI)

    SMPTE425M3Gb/s Mapping(3G-SDI)

    SMPTE424M 3Gb/s serial interface(3G-SDI)


    Data

    Data encode : RS485/RS422/RS232/Manchester

    Physical interface : Industrial standard screw terminal

    Frequency/Rate support : 0~400K bps


    Fiber Optic

    Number of Optical port : 1 SFP

    Connector : Simplex LC

    Transmission Distance: Multi-mode 550m

    Single-mode 20Km – 80Km

    Wavelength: Mulitmode:850/1310nm;

    Single-mode:1310/1550nm (Option)


    Connectors

    Video : BNC 75Ω

    Fiber Optical : Simplex LC

    Stand-alone power: DC JACK

    Rack power: AC line cord


    Electrical & Mechanical

    Power adaptor : AC 100-240V to DC 5V 2A

    Power consumption : <3W


    Environmental

    Operating Temperature : -45 C~+75 C

    Storage Temperature : -45 C~+85 C

    Relative Humidity : 0%~95% (non-condensing)

    MTBF : >100,000 hours


    Ordering information


    Model NumberDescriptionOptic SpecificationFiber Connector
    HD-1HD-20/HD-SDI1 x HD/SD-SDI video/audio + 1 x return RS485 data1.485G VIDEO SFP / SM / WDM / 20KmSimplex LC
    HD-2HD-20/HD-SDI2 x HD/SD-SDI video/audio + 1 x return RS485 data1.485G VIDEO SFP / SM / CWDM / 20KmSimplex LC
    HD-4HD-20/HD-SDI4 x HD/SD-SDI video/audio + 1 x return RS485 data1.485G VIDEO SFP / SM / CWDM / 20KmSimplex LC
    HD-1HD-20/3G-SDI1 x 3G-SDI video/audio + 1 x return RS485 data2.97G VIDEO SFP / SM / WDM / 20KmSimplex LC
    HD-2HD-20/3G-SDI2 x 3G-SDI video/audio + 1 x return RS485 data2.97G VIDEO SFP / SM / CWDM / 20KmSimplex LC
    HD-4HD-20/3G-SDI4 x 3G-SDI video/audio + 1 x return RS485 data2.97G VIDEO SFP / SM / CWDM / 20KmSimplex LC
