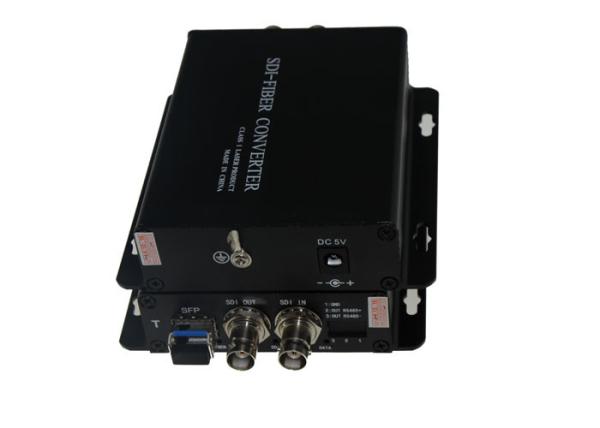

Professional RS485 SDI Fiber Converter , Ethernet Audio Converter To Fiber Optic

    Buy cheap Professional RS485 SDI Fiber Converter , Ethernet Audio Converter To Fiber Optic from wholesalers

    Buy cheap Professional RS485 SDI Fiber Converter , Ethernet Audio Converter To Fiber Optic from wholesalers
    • Buy cheap Professional RS485 SDI Fiber Converter , Ethernet Audio Converter To Fiber Optic from wholesalers

    Professional RS485 SDI Fiber Converter , Ethernet Audio Converter To Fiber Optic

    Ask Lasest Price
    Brand Name : HD
    Model Number : HD-1HD-20/3G-SDI
    Certification : CE,ROHS,FCC/ISO9001
    Price : negotiation
    Payment Terms : T/T or western Union
    Supply Ability : 50000 pcs per month
    Delivery Time : 3-7working days after received deposit
    • Product Details
    • Company Profile

    Professional RS485 SDI Fiber Converter , Ethernet Audio Converter To Fiber Optic

    RS485 SDI fiber Converter Ethernet audio converter to fiber optic​


    Overview

    EFP converter to fiber optic include camera optic adaptor and optic base station.The system transports a 3G/HD-SDI signal from the camera to the Base Station and a return video (3G/HD-SDI or CVBS), Remote control data, genlock, intercom, tally, audio and 10/100M Ethernet are also provided.

    Feature

    Work Temp-25°C to 55°C
    Storage Temp-40°C to 85°C
    humidity0 ~ 95% (non-condensing)
    Camera Optic Adaptor
    Input powerDC 11~19V
    Power consumption<8W
    Net weight1kg
    Appearance size160mm*100mm*44mm(without V-mount / A-mount)
    Optic Base Station
    Input powerAC90~240V
    Power consumption<20W
    Net weight3kg
    Appearance size19” 1U standard rack mount

    Tech Specification

    Optical:


    Wavelength1310nm / 1550nm / CWDM
    Output Power-6~-1dBm
    Rx sensitivity<-18dBm
    Transmission DistanceSM fiber 10+km , MM fiber 300m
    Optical connectorDul LC /FC/ST/SC/ Lemo / Neutrik (optional)

    SDI input/output:


    Signal formatSMPTE 424M, SMPTE 292M, SMPTE 259M
    Data rate270Mbit/s - 1.48Gbit/s - 3Gbit/s
    Cable Equalization

    Automatic cable EQ (Belden 1694A cable)

    250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s

    SDI interfaceBNC 75 Ohm

    Intercom:


    Camera Optic Adaptor
    Interface4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack
    MicrophoneMic inputs with mute and pre-amps
    HeadphoneWith amplifier and volume up or down
    Optic Base Station
    Interface

    3pin XLR Female/Male: Party line audio for Clearcom or RTS Intercom main station

    DB9(Male): Line level audio input and output,


    Tally:


    Camera Optic Adaptor
    Interface4pin air head or 3pin mini XLR
    OutputDry Contact Closure or wet LED+/-

    On: short or LED on

    Off: open or LED off

    Optic Base Station
    InterfaceDB9(Male)
    InputDry Contact Closure or TTL
    On: short to GND or TTL low Off: open or TTL high

    Remote:


    Camera Optic Adaptor
    InterfaceRJ45 Datavideo remote interface
    DataRS422 /RS232/RS485
    Optic Base Station
    InterfaceRJ45 Datavideo remote interface
    DataRS422 /RS232/RS485

    Ethernet:


    Work modeFull duplex/half duplex
    Data Rate10/100Mbps(AUTO)
    connection terminalRJ45

    FAQ

    Q:Are you a factory or trading company?

    We are a factory


    Q:What’s the most valuable and important parts for fiber optical converter ?

    Chipset, fiber transceiver and power adaptor

    Q:How does Ho-link make the quality control of media converter/SFP transceiver/video converter ?

    Every product must be tested as above process before leaving factory.

    Q:How about the Handar product price ?

    Handar can not make sure our price is the lowest in the market, but we can make sure our price is the most competitive based on the same quality.

    Q:What’s MOQ for OEM ?

    There is no quantity limit.

    Q: How long can you prepare the samples?

    Samples can be prepared within 3 days after receiving the payment.

    Q: What's the trading term and payment method?

    The trading term we prefer is EXW, if you require different term, contact to discuss it. And the payment method we prefer is T/T, but we can still accept the payment western union.

    Q: What's the guarantee for the product?

    We provide 36 months guarantee of repairing.

    Q :Do you ship internationally?

    Yes. We can ship anywhere you would like. we can ship it via our delivery forwarder or on your shipping account number, to ensure you are getting the best rates, which allows you to handle the export/import taxes.

    Q: I placed an order, who do i call to get tracking information?

    Our sales staff that you placed your order with, he/she will provide you with tracking information by email.

    Q: Why choose Handar?

    1) Prompt delivery and remarkable services.

    2) Competitive selling prices

    3) Rich experience of OEM&ODM co-operation.

    4)100% new materials for production and 100% reliable quality If you have some question about our products, can contact us by ali trademanager or email. We will get back to you within 24 hours.
