165MHz DVI To VGA Converter LC Connector With Industrial Terminal

    Buy cheap 165MHz DVI To VGA Converter LC Connector With Industrial Terminal from wholesalers

    Buy cheap 165MHz DVI To VGA Converter LC Connector With Industrial Terminal from wholesalers
    • Buy cheap 165MHz DVI To VGA Converter LC Connector With Industrial Terminal from wholesalers

    165MHz DVI To VGA Converter LC Connector With Industrial Terminal

    Ask Lasest Price
    Brand Name : HD
    Model Number : HD-VGA
    Certification : CE/FCC/RoHS/ISO9001:2015
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 5000 pcs per months
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    165MHz DVI To VGA Converter LC Connector With Industrial Terminal

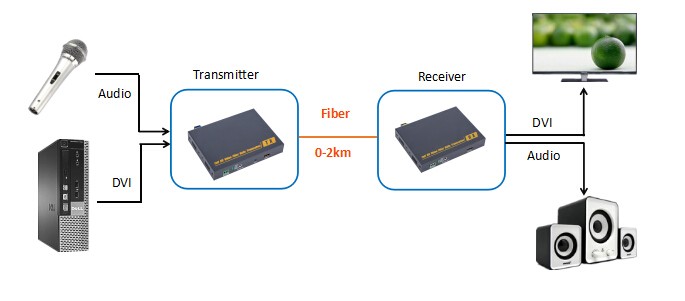

    DVI to VGA converter resolution upto 1920x1200@60HZ distance 2KM DVI fiber extender


    Feature:

    1. Transmits DVI video signals up to 2km over a pair fiber optic cable;


    2. Support video resolution up to 1920*1200P@60Hz;


    3. Support EDID copy function, can match many kind display device;


    4. Support RS232 Undirectional transmission.


    5. Support external stereo audio unidirectional transmission;


    6. Compliance with DVI 1.0.


    7. High compatibility, can auto-match source and display device;


    8. Built-in automatic adjustment system, make the image smooth, clear and stable;
    9. Built-in ESD protection system;
    10. Simple to install, plug and play







    ParameterDescription
    VideoStandardsDVI 1.0;
    Maximum pixel clock165MHz
    Maximum data rate10Gbps
    Resolution rangeUp to 1920X1200@60Hz
    ConnectorDVI-D
    Impedance100Ω
    AudioInterface3.5mm earphone seat
    Signal typeStereo
    RS232InterfaceIndustrial terminal
    Signal directionUnidirectional
    Baud rateSelf-adaptive, Max:115200bps
    Data bits8
    Optical fiberInterfaceLC connector
    Fiber typeSingle-mode a pair fiber
    WavelengthSingle-mode 1310nm
    Interface bandwidth10Gbps
    Transmission distancestandard 2km
    OtherPower supplyThe power adapter: DC 12V/1A
    Power dissipationMAX 6W
    TemperatureOperating: -5 ~ +70
    HumidityOperating: 5% ~ 90%
    Dimension120*120*30mm
    The warranty1 year free warranty

    dvi to vga converter Pinwei PW-THF122D resolution upto 1920x1200@60HZ distance 2KM DVI fiber extender


    dvi to vga converter Pinwei PW-THF122D resolution upto 1920x1200@60HZ distance 2KM DVI fiber extender
