8 Channel digital video optical transmitter & receiver fiber
optical converter audio bnc to fiber video converter
Fiber Optical Video Converter
Our 1-64 channel video multiplexers can simultaneously transmit
1-64 channels of 10-bit digitally encoded broadcast quality video /
return or bidirectional data / unidirectional or bidirectional
audio / Ethernet / Telephone / Switching value over one multimode

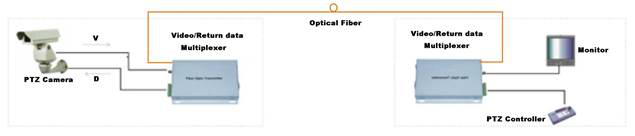

or singlemode optical fiber. These multiplexers are typically used
in applications where the cameras have P/T/Z capabilities. Plug and
Play design ensures the ease of installation and operation.
Electronic and optical adjustments are never required. LED
indicators are provided for instantly monitoring system status.
Devices are available for either standalone or rack-mount
installation ,which is suitable for different working environment .
PRODUCT CHARACTERISTICS
10-bit diditally encoded and non-compressionbroadcast quality video
transmission
Directly compatible with NTSC, PAL, and SECAM CCTV camera systems
and support RS-232, RS-422, and RS-485 data protocols
Support any high-resolution video signal
Automatic compatible PAL, NTSC and SECAM video system
Power supply and other parameter state indication, which can
monitor the operation condition of system
Support no-damage regenerative trunk of video
Constant input optical power, and large dynamic range ,no
Electrical or Optical Adjustments Required .
Special ASIC design .
Industry-grade of operating temperature from -40℃ to 85℃ , which is
applied to the different working environment
Hot-swap function
We can offer rack-mounted chassis in standard 1U/2U/2.5U/4U .
TECHNOLOGY CHARACTERISTICS
| VIDEO CHARACTERISTICS |
| Video interface number | 1-64 channel video |
| Bandwidth of video | 5MHz-7.5 MHz |
| Video input / output impedance | 75 Ω(imbalance) |
| Differential gain | (10%-90%APL) DG <1% ( typical value) |
| Differential phase | (10%-90%APL) DP <0.7° ( typical value) |
| Automatic compatible video system | PAL SECAM NTSC |
| Weighted signal-to-noise ratio | S/N ≥ 70dB |
| AUDIO CHARACTERISTICS | |
| Interface port | RJ-45 Lotus Block industrial standard port |
| Audio input / output impedance | 600Ω (Balance/Imbalance) |
| Audio input / output voltage | 2Vpp ( typical value) |
| Audio input / output level | 0 dbm ( typical value) |
| Audio Bandwidth | 10Hz~20kHz |
| Audio Digital Bandwidth | 24 bit |
| Audio signal-to-noise ratio | S/N≥95dB (weighted) |
| DATA CHARACTERISTICS | |
| Interface Port | RJ-45 industrial standard port |
| Interface Signal Type | RS485/RS422/RS232/Manchester |
| Code rate | 0~400Kbps |
| BER | ≤ 10-9 |
| ETHERNET CHARACTERISTICS | |
| Interface Port | RJ45 |
| Duplex | Full duplex/half duplex |
| Supporting agreements | IEEE802.3,10M,10/100M automatic negotiation |
| TELEPHONE CHARACTERISTICS | |
| Interface Port | RJ11 |
| Bandwidth of telephone | 8KHZ |
| Special functions | Support call-showing function;support H-F |
| Operating mode | Point-point hot line mode/program-controlled exchange mode |
| OTHER NORMAL CHARACTERISTICS | |
| MTBF | ≥ 105 hours |
| Operating Temperature | -40℃ ~ 85℃ |
| Humidity | 0~95% non-condensing |
| Operating Voltage | Input:AC220v or DC-48V/24V ; Output:DC 5V/2A |
| OPTICAL CHARACTERISTICS | |
| Fiber connector | FC /SC /ST |
| Transmission distance | 0-100KM |
| Wavelength | 1310/1550μm |
| EXTERNAL DIMENSIONS | |
Wall-link-type (stand alone) | 1-channel Mini-type:11.1(L)×10.7(W)×2.8(H) cm |
| 1-4 channel : 19.2(L)×17.3(W)×2.8(H) cm |
| 5-8 channel : 19.2(L)×17.3(W)×5.6(H) cm |
| Rack-mount chassis Type | 9-16 channel : 48.3(L)×18(W)×4.4(H) cm |
APPLICATIONS
Intelligent Transportation System
Connection of Sub-network for Surveillance Center
Public Security Surveillance
High Way & Toll Station Surveillance
High Quality Video Conference
Industrial Closed Circuit Television Surveillance
Coliseum using for TV-live ,audio transmission
