4 Channels Video Rs485 To Fiber Optic Converter For CCTV Security System

4 channels video 1 RS485 data ip fiber optic videos bnc to fiber converter for CCTV security system

Description

HD-4V1DT/R optical video transmitter and receiver transmit 4ch video and 1ch RS485 data signals on optical fiber.On 9/125um Single mode fiber its working distance is
20Km to 80KM while on multimode fiber it’s 1Km.
Applications

Police and safe city monitoring system
Express way security protection and toll station system
City traffic monitoring system
Building and campus monitoring system
Industrial monitoring (airport, chemical plant, railway, etc.)
Military monitoring (frontier defense, national defense)
Electronic power oil field, TV station program broadcasting
Gymnasium (live video and audio transmission)

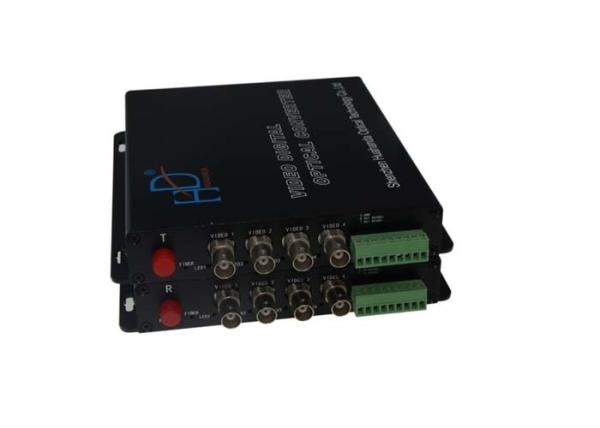

4 Channels Video Rs485 To Fiber Optic Converter For CCTV Security System

Technical Specification

Optical
Wavelength	1310nm/1550nm
Output Power	-8~3dBm
Optic fiber	Single mode (9/125um) 20Km, multimode (50/125um) 1Km, ( 62.5/125um) 500m
Receiving sensitivity	-30dBm
Interface	FC standard, ST/SC optional
Video
Channel Quantity	4ch, from camera to control center
Compatible Systems	NTSC/PAL/SECAM
Impedance/Voltage	BNC 75Ω (unbalanced) / 2.0Vp-p
Differential Gain	< ±1%
Differential Phase	< ±1
S/N ratio	>60dB(weighting)(8 bit)
Interface	BNC
Data
Channel Quantity	1ch, from control center to camera
Data protocol	RS485
Bandwidth	0~300kbps
Error rate	10-9
Interface	Phoenix terminal
Electrical. Environmental. Mechanical
Operating voltage	DC 5V1A
Operating temperature	-35℃~+75℃
Storage temperature	-45℃~+85℃
Humidity	0~95%non-condensing
