Brand Name : | HD |
Model Number : | HD-SFP+/10G |
Certification : | CE FCC RoHS |
Price : | negotiation |
Payment Terms : | T/T, Western Union |
Supply Ability : | 50000PCS/M |
Delivery Time : | 3-7working days |

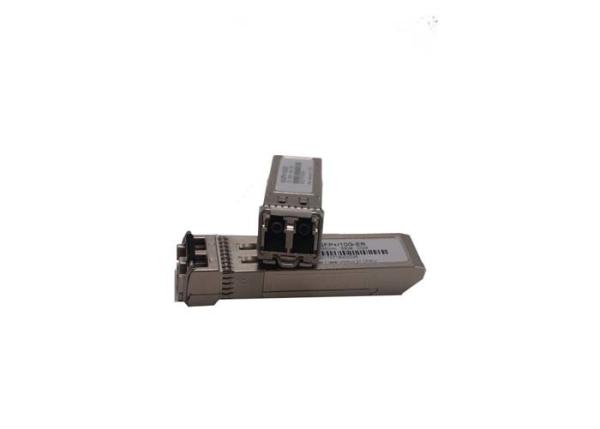

DUAL 10G SFP transceiver 1310nm 10km Single Mode Optical Transceiver
Features
9.95Gbps to 11.1Gbps data links
300m with 50/125μm 2000MHz MMF
850nm VCSEL laser
Duplex LC Connector
Hot-pluggable XFP footprint
Single 3. 3V power supply
Operating temperature: 0℃ to 70℃
RoHS
Digital Diagnostic Monitor (DDM)
Power Consumption <1.5W
10Gbps enhanced small form factor pluggable XFP transceiver compatible with 10GBASE-SR/SW and 1200-Mx-SN-I 10G FC. It is suitable for multi-mode fiber (MMF) communications in 10Gbps Ethernet/FC.
Specification:
Mode | SM | MM | |
Polish | UPC | APC | PC |
Insertion Loss | Typical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB | |
Return Loss | ≥50dB | ≥65dB | ≥35dB |
Interchangeability | ≤0.2dB | ||
Repeatability | ≤0.1dB | ||
Durability | ≤0.2dB (1000 times mating) | ||
Tensile Strengh | > 10kg | ||
Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) |
![]() |
