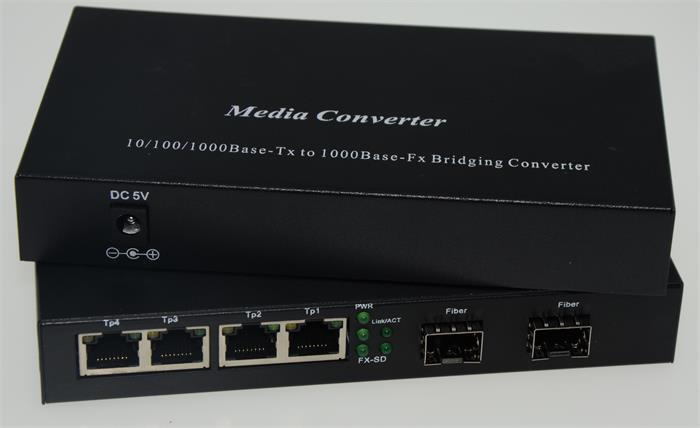

4 x 10/100/1000Base-Tx singlemode Gigabit Fiber Optic Media
Converter GE SFP ports
System Design
4-Port Gigabit Ethernet Switch is equipped with 4-port 10/100/1000M
UTP ports and 2-port 1000M FX or(SFP) slot. End user may choose
different 1000M SFP module according to his demand, such as
1000Base-T,1000Base-SX or 1000Base-LX etc. The product is of
compact size, stable performance, excellent quality. It is widely
applied in small or medium Optical Fiber Ethernet network.
Features
- Complies with
IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x
auto-negotiation
- Support port base VLAN
- Auto MDI/MDI-X supporting
- Support MAC self-learning
- Proper LED for easier monitoring of device working status
- Extends transmission distance from 550m to 120Km
- MM or SM fiber interface according to users’ requirements
- Duplex or Simplex fiber interface according to users’ requirements
CE & FCC Class A approved
Package List
1x Gigabit Dual Fiber Media Converter
1x User Guide
1x Power Adapter
1x Warranty Card
General Technology Interface
Standard:IEEE802.3z/AB, Connector: UTP:RJ-45,10/100/1000Mbps；
10/100/1000Base-T and 1000Base-SX/LX FX(SFP )slot:1000Mbps
Exchange Attribute Transmission Distance
MAC address table: 1K Cable:UTP:Cat.5 or 6 UTP(the max distance up
Frame buffer memory:1MKb to 100m)
Switching capacity:12G Multimode Fiber:50/125,62.5/125μm
Flow control: (the max distance up to 224/550m)refer to SFP
Full Duplex: IEEE802.3x flow control Singlemode
Fiber:8/125,8.7/125,9/125μm
Half Duplex: back pressure flow control (the max distance up to
10～100 km) refer to SFP
LED Indicator Power Supply
PWR,F1 Link/Act,F2 Link/Act； AC220V(100-240V),50～60Hz； DC:5V,2A
TP1～TP4 Link/Act,TP1～TP4 100,
TP1～TP4 1000
Environment
Ambient Temperature::0 ～ +50℃；
Storage Temperature::-20 ～ +70℃；
Humidity:5% ～ 90%
Ordering Information
| Model No. | Description |
| HD-2224-SFP | 4 x 10/100/1000Base-Tx to 2 x 1000Base-Fx ,GE SFP Ports ,VLAN
Optional |
