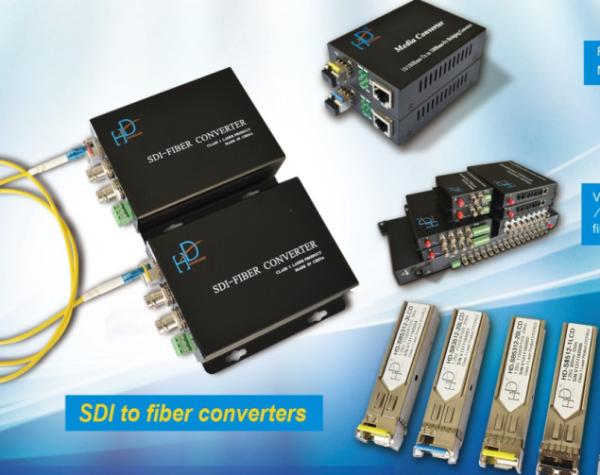

HD/3G SDI Fiber Converter RS485 data to fiber HD video optical converter

HD/3G SDI Fiber Converter RS485 data to fiber HD video optical converter

Product Description

Introduction

Featuring transmission of high resolution content with highest quality, OLYCOM OM615-1S3GWT/R 3G-SDI fiber optic video extender offers long-range transmission capacity over extreme distance of up to 40km. The 3G-SDI optical extender automatically recognized and transmits SDI, HD-SDI, 3G-SDI signals, with embedded audio and metadata, and is fully compliant with SMPTE 259M, 292M, 424M and ITU digital video standards.

To optimize SDI signal transmission, the input signals are automatically equalized and re-clocked. The OM615-1S3GWT/R 3G-SDI fiber optic video extender is ideally suited for use in digital signage, broadcast, staging, and HD CCTV applications. And fiber optic transmission, which is inherently secure and immune to outside interference, is favored in government, military, and medical environments.

Key Featuers

1. Extends SDI, HD-SDI, and 3G-SDI signals to very long distances over a single fiber via 3G video SFP

2. Supports multi-rate SDI at rates up to 2.97 Gbps and complies with SMPTE 259M, 292M, 424M and ITU digital video standards

3. Input equalization and re-clocking on buffered outputs

4. Real-time status LED indicators

5. Redundant output for previewing on a local monitor

6. Hot-Swappable

7. 1ch RS485 data to fiber

Specification

Product Name	SDI optical transmitter and receiver
Model No.	OM615-S1V1D-T/R
Optical
Wavelength	1310nm/1550nm
Fiber Type and Distance	multimode (50/125um) 5Km, ( 62.5/125um) 2Km single mode (9/125um) 20Km / 40Km
Transmitting Power	-5dBm to -10dBm
Receiving Sensitivity	-26dBm to -30dBm
Return Loss	> 14dB
Jitter	< 0.2UI
Interface	LC
Video
Signal type	HD-SDI, SDI, and 3G-SDI digital video signals
Gain	Unity
Resolution	8 or 10 bits, automatic
Data rates	270 Mbps, 1.485 Gbps, 2.970 Gbps
Operation standards	SMPTE 259M-C, SMPTE 292M, SMPTE 424M, ITU-R BT.601, ITU-R BT.1120
Auto data rate lock	Yes
Video Input - Transmitter
Number/signal type	2 single link SDI, HD-SDI, or 3G-SDI digital component video 1 for Tx, 1 for local preview
Interface	2 female BNC
Impedance	750ohms
Data rates	19 Mbps to 2.97 Gbps
Nominal level	0.8 Vp-p
Minimum/maximum levels	0.5 V to 1.0 Vp-p
Return loss	≥15 dB @ 5 MHz to 1.5 GHz, ≥10 dB @ 1.5 GHz to 3.0 GHz
Input cable equalization	Automatic for up to -30 dB of cable loss
Video Output - Receiver
Number/signal type	2 single link SDI, HD-SDI, or 3G-SDI digital component video 1 for Rx, 1 for backup / share
Interface	2 female BNC
Impedance	750ohms
Re-clocking	Automatic for 270 Mbps, 1.485 Gbps, 2.97 Gbps, or bypassed for unrecognized rates
Nominal level	0.8 Vp-p
Minimum/maximum levels	0.5 V to 1.0 Vp-p
Return loss	<-25 dB @ 100 MHz
Data
Data Channel	1ch RS485/422/232
Electrical. Environmental. Mechanical
Voltage	DC5V1A
Operating Temperature	-35℃～＋75℃
Storage Temperature	-40℃～85℃
Humidity	5～95% non-condensing
Dimension	117 mm L x 80 mm W x 22 mm
Weight	0.5KG
