Home > Fiber Optic Accessories >

4 Cores Armored Fiber Optic Patch Cables Singlemode For Access Network

Product Categories

Shenzhen Handar Optical Technology Co.,Ltd

Contact Now

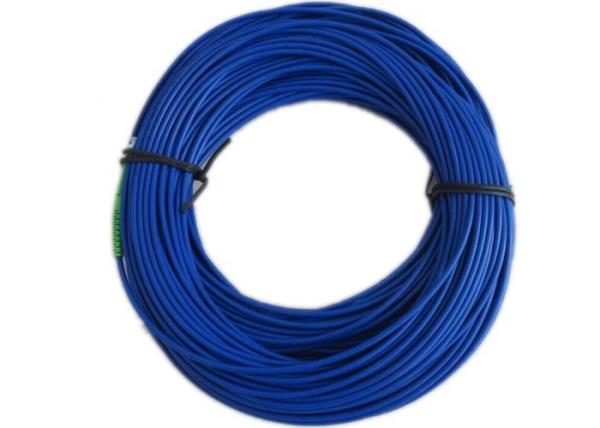

4 Cores Armored Fiber Optic Patch Cables Singlemode For Access Network

Ask Lasest Price
Brand Name :	HD
Model Number :	HD-FC-1
Certification :	CE/RoHs/FCC/ISO 9001
Price :	negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	50000 pcs per month
Delivery Time :	3-7working days after received deposit

Add to Cart

Product Details
Company Profile

4 Cores Armored Fiber Optic Patch Cables Singlemode For Access Network

LC/UPC-LC/UPC Singlemode 4Cores Armored Fiber Patch Cable Fiber Optic Assessories

Features

1. Price-Competitive

2. Low Insertion Loss & PDL

3. Factory-terminated and Tested

4. Fiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda Fiber

5. Connector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTP

6. Polishing Options: PC/UPC/APC

7. Feature Connector with Ceramic Ferrules

Applications

1. Access Network

2. Telecom/CATV Systems

3. FTTx

Specifications

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
*All values specified are with connectors.

Competitive Advantage

HD strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.

Why choose us :

Competitive price
Fast delivery
Longtime warranty
Reliable quality, OEM service available
Professional product and technical support
Prompt answer for any question or inquiry
Value-added service: except good products, we can provide good services on logistic and other help you may need

LC/UPC-LC/UPC Singlemode 4Cores Armored Fiber Patch Cable Fiber Optic Assessories

Product Tags:

fiber optic parts

optical fiber parts

4 Cores Armored Fiber Optic Patch Cables Singlemode For Access Network
