1 Return Data BNC To Fiber Converter For Video Conference 0-100KM Distance

16 Channel HD CVI/AHD Video to fiber Converter ,1 return data (Rs485) bnc to fiber video converter

Overviems

The video (+Reverse Data) optical converter adopt the advanced international digtal video and optical
fiber transmission technology, and implement the transmission of real-time &synchronization , no-distortion
and high quality to multi-channel video singnal on the single-core optical fiber . Video digital optical converter
adopt full digital video no-compression transmission technology and high quality video effect , which can meet
the user's requirement . The plug-and-play makes the installation more convenient and easier , the LED design
helps the user to know the working status easily,and it is unnecessary to implement the spot adjustment , its
optical module and core circuit adopt the imported components that have high stability , conform to the international
standards, which is applied to the different working environment.

Features

1. 10-bit diditally encoded and non-compressionbroadcast quality video transmission

2. Directly compatible with NTSC, PAL, and SECAM CCTV camera systems and support RS-232, RS-422, and RS-485 data protocols

3. Support any high-resolution video signal

4. Automatic compatible PAL, NTSC and SECAM video system

5. Power supply and other parameter state indication, which can monitor the operation condition of system

6. Support no-damage regenerative trunk of video

7. Constant input optical power, and large dynamic range ,no Electrical or Optical Adjustments Required .

8. Special ASIC design

9. Industry-grade of operating temperature from -40℃ to 85℃ , which is applied to the different working environment

10. Hot-swap function

11. We can offer rack-mounted chassis in standard 1U/2U/2.5U/4U

Technical Specification

Specifications

Video channels	16 channel
Video bandwidth	8 MHz
Automatic compatible video system	PAL, NTSC, SECAM
Video input / output impedance	75 Ω (unbalance)
Video signal-to-noise ratio	≥67dB
Differential gain	(10%-90%APL) DG <1% (typical value)
Differential phase	(10%-90%APL) DP <0.7° (typical value)
Video connector	BNC
Fiber-optic Specification	F/O connector: FC/ST/SC TX: Power: -5 ~ -0dBm Sensitivity: ≤-34dBm RX: Power:-5 ~ -0dBm Sensitivity: ≤-34dBm Transmission Distance: 60KM (single mode) Operating Wavelength: TX1310/RX1550nm (Transmitter) TX1550/RX1310nm (Receiver)
Specification of custom-made options
Data	Connector: Terminal Blocks Encoded type: RS485 / RS422 / RS232 / Manchester Data rate: 0 - 400Kbps BER: ≤10-9
Audio	Connector: Terminal Blocks Audio input / output impedance: 600Ω (Balance/ unbalance) Audio input / output voltage :2Vp-p ( typical value) Audio input / output level :0dBm ( typical value) Video bandwidth:10HZ~12KHZ Audio digital encoded bandwidth :24bit Audio signal-to-noise ratio: S/N≥95dB (weighted)
Telephone	Connector: RJ11 Bandwidth :8KHZ Features:Support call-showing function ;support H-F Operating mode : Point to point hotline mode / FXS-FXO
Ethernet	Connector: RJ45 Support mode : Half duplex or Full duplex Standards:IEEE802.3 Data rate : 10M / 100Mbps Bandwidth: 25M

Video channels	16 channels
Video bandwidth	8 MHz
Automatic compatible video system	PAL,NTSC,SECAM
Video input / output impedance	75 Ω(unbalance)
Video signal-to-noise ratio	≥67dB
Differential gain	(10%-90%APL) DG <1% ( typical value)
Differential phase	(10%-90%APL) DP <0.7° ( typical value)
Video connector	BNC
Fiber-optic Specification	F/O connector: FC/ST/SC TX :Power:-5 ~ -0dBm Sensitivity :≤-34dBm RX:Power:-5 ~ -0dBm Sensitivity :≤-24dBm Transmission Distance :60KM (single mode) Operating Wavelength: TX1310/RX1550nm(Transmitter);TX1550/RX1310nm(Receiver)
Specification of custom-made options
Data	Connector: Terminal Blocks Encoded type : RS485 / RS422 / RS232 / Manchester Data rate : 0 - 400Kbps BER: ≤10-9
Audio	Connector: Terminal Blocks Audio input / output impedance :600Ω(Balance/ unbalance) Audio input / output voltage :2Vp-p ( typical value) Audio input / output level :0dBm ( typical value) Video bandwidth:10HZ~12KHZ Audio digital encoded bandwidth :24bit Audio signal-to-noise ratio: S/N≥95dB (weighted)
Telephone	Connector: RJ11 Bandwidth :8KHZ Features:Support call-showing function ;support H-F Operating mode : Point to point hotline mode / FXS-FXO
Ethernet	Connector: RJ45 Support mode : Half duplex or Full duplex Standards:IEEE802.3 Data rate : 100M / 1000Mbps Bandwidth: 25M

Video channels	16 channels
Video bandwidth	8 MHz
Automatic compatible video system	PAL,NTSC,SECAM
Video input / output impedance	75 Ω(unbalance)
Video signal-to-noise ratio	≥67dB
Differential gain	(10%-90%APL) DG <1% ( typical value)
Differential phase	(10%-90%APL) DP <0.7° ( typical value)
Video connector	BNC
Fiber-optic Specification	F/O connector: FC/ST/SC TX :Power:-5 ~ -0dBm Sensitivity :≤-34dBm RX:Power:-5 ~ -0dBm Sensitivity :≤-24dBm Transmission Distance :60KM (single mode) Operating Wavelength: TX1310/RX1550nm(Transmitter);TX1550/RX1310nm(Receiver)
Specification of custom-made options
Data	Connector: Terminal Blocks Encoded type : RS485 / RS422 / RS232 / Manchester Data rate : 0 - 400Kbps BER: ≤10-9
Audio	Connector: Terminal Blocks Audio input / output impedance :600Ω(Balance/ unbalance) Audio input / output voltage :2Vp-p ( typical value) Audio input / output level :0dBm ( typical value) Video bandwidth:10HZ~12KHZ Audio digital encoded bandwidth :24bit Audio signal-to-noise ratio: S/N≥95dB (weighted)
Telephone	Connector: RJ11 Bandwidth :8KHZ Features:Support call-showing function ;support H-F Operating mode : Point to point hotline mode / FXS-FXO
Ethernet	Connector: RJ45 Support mode : Half duplex or Full duplex Standards:IEEE802.3 Data rate : 100M / 1000Mbps Bandwidth: 25M

Mechanical Structure & Environment

Power	DC5V 2A
Power Consumption	≤6W
Working Temperature	-15ºC ~65ºC
Storage Temperature	-40ºC ~85ºC
Relative Humidity	5%~95% ( no condensation)
MTBF	≥ 100000Hours

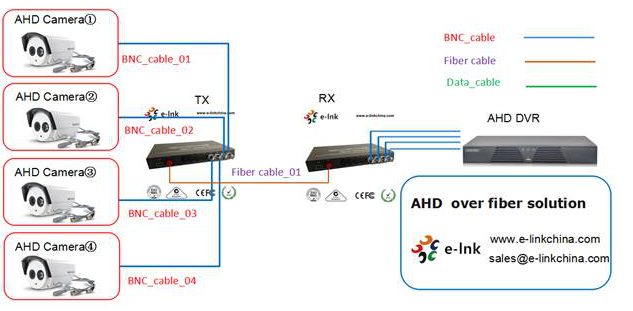

Application

Intelligent Transportation System
Connection of Sub-network for Surveillance Center
Public Security Surveillance
High Way & Toll Station Surveillance
High Quality Video Conference
Industrial Closed Circuit Television Surveillance
Coliseum using for TV-live ,audio transmission

Ordering information

Model Number	Product Configuration	Fiber Interface	Fiber Mode	Wavelengths	Maximum Transmission Distance
HD-M2V-T/RF	8Ch Video	FC/SC/ST	Multi-mode	1310/1550 nm	2Km
HD-S2V-T/RF	8Ch Video	FC/SC/ST	Single-mode	1310/1550 nm	20Km
HD-M2V↑1D↓3-T/RF	8Ch Video 1 Ch Data	FC/SC/ST	Multi-mode	1310/1550 nm	2Km
HD-S2V↑1D↓3-T/RF	8Ch Video 1 Ch Data	FC/SC/ST	Single-mode	1310/1550 nm	20Km

Company strength

We have the high-tech machine, which could resistance the extreme weather, no matter how cold or how hot the weather is.
Our products already certificated by FCC,CE,RoHS.The quality and the after sales-service could be guaranteed.
We are standard factory , certificated by ISO9001:2015

FAQ

1. What is the warranty on the parts you sell?
All parts sold by E-link China meet all of the manufactures specifications and carry one year warranty. Some customized products could carry up to three years warranty.

2. What payment methods do you offer?
We accept payment via T/T, Western Union;

3. What is your minimum order?
To achieve customers' satisfaction, we accept sample order, even one Piece.
